## Jigsaw Layouts (Generate / Test)

For fans of Killer Sudoku, Samurai Sudoku and other variants

### Re: Jigsaw Layouts (Generate / Test)

coloin wrote:from a post way back bumblebeagle - it seems that the minimum clues is 8

Hatman posted several 8 clue puzzles that have the "Hands" Jigsaw regions arrangement. One of the regions, however, doesn't have contiguous cells.
http://www.rcbroughton.co.uk/sudoku/forum/viewtopic.php?f=13&t=753 is where he posted them but the images links are unfortunately broken. According to Hatman it was introduced first by Nikoli_Freak. I had at the time some experiments with the layout and found the Jigsaw regions force the formation of X diagonals and Old Lace group too.

tarek

[Edit: Found the image: this is one my puzzles ]
Last edited by tarek on Thu Dec 19, 2019 6:50 pm, edited 1 time in total.

tarek

Posts: 3759
Joined: 05 January 2006

### Re: Jigsaw Layouts (Generate / Test)

@creint: You're right, of course - SAT is probably the fastest way to test a JL for validity ("has any solution"). I didn't realise this back then.

@tarek: Gareth Moore published (in his "SudokuXtra" magazine) several puzzles with toroidal jigsaw layouts.

coloin wrote:So there are 5,279,342 valid ED continuous JLs
[ and 13,638 invalid] to clarify !
.... and each of these valid layouts may have 0,1 or more ED solutions

"Valid" means a layout has solutions, the invalid ones do not have solutions. See the hidden image in the very first post for a couple of innocent-looking, but invalid, layouts.

The counts I gave (13,638 invalid, 5,279,342 valid) refer to a restricted class of JL's. These are what I considered "nice" layouts - they are all symmetric, and have no partitions (no subset of regions forms a 9 x X rectangle).

Also, my actual catalog of valid "nice" JL's has only 3.5 million. I can't remember now - was this the result of a culling operation, ie removing duplicates (reflections/rotations)? Hmmm ...

Mathimagics
2017 Supporter

Posts: 1884
Joined: 27 May 2015
Location: Canberra

### Re: Jigsaw Layouts (Generate / Test)

Busy with jigsaw layouts....
The next jigsaw layout is valid (a solution can be found) for JS without boxes,
but no solution is possible for JSB with boxes, all jigsaw pieces touch 3 or more rows/columns
Code: Select all
`#1//B4,JSB123456789........................................................................111152222144152552144355552114353922444333999664373988677773998677678998666678888`

Is there a list of valid Jigsaw layouts with/without boxes available, say length<2500 and (point)symmetrical?

Hajime

Posts: 1018
Joined: 20 April 2018
Location: Netherlands

### Re: Jigsaw Layouts (Generate / Test)

[quote="Hajime"]Busy with jigsaw layouts....
The next jigsaw layout is valid (a solution can be found) for JS without boxes,
but no solution is possible for JSB with boxes, all jigsaw pieces touch 3 or more rows/columns
A valid JS starting with the numbers 1 to 9 in order at the first row:
Code: Select all
`1....67.....5..............9.1.....4....6.......3.4......1...7...5.........8...5. 111152222144152552144355552114353922444333999664373988677773998677678998666678888`

solution:
Code: Select all
`123456789837542961648917325971285634259761843596374218364198572485623197712839456`
Last edited by urhegyi on Thu Jan 07, 2021 7:00 pm, edited 1 time in total.
urhegyi

Posts: 614
Joined: 13 April 2020

### Re: Jigsaw Layouts (Generate / Test)

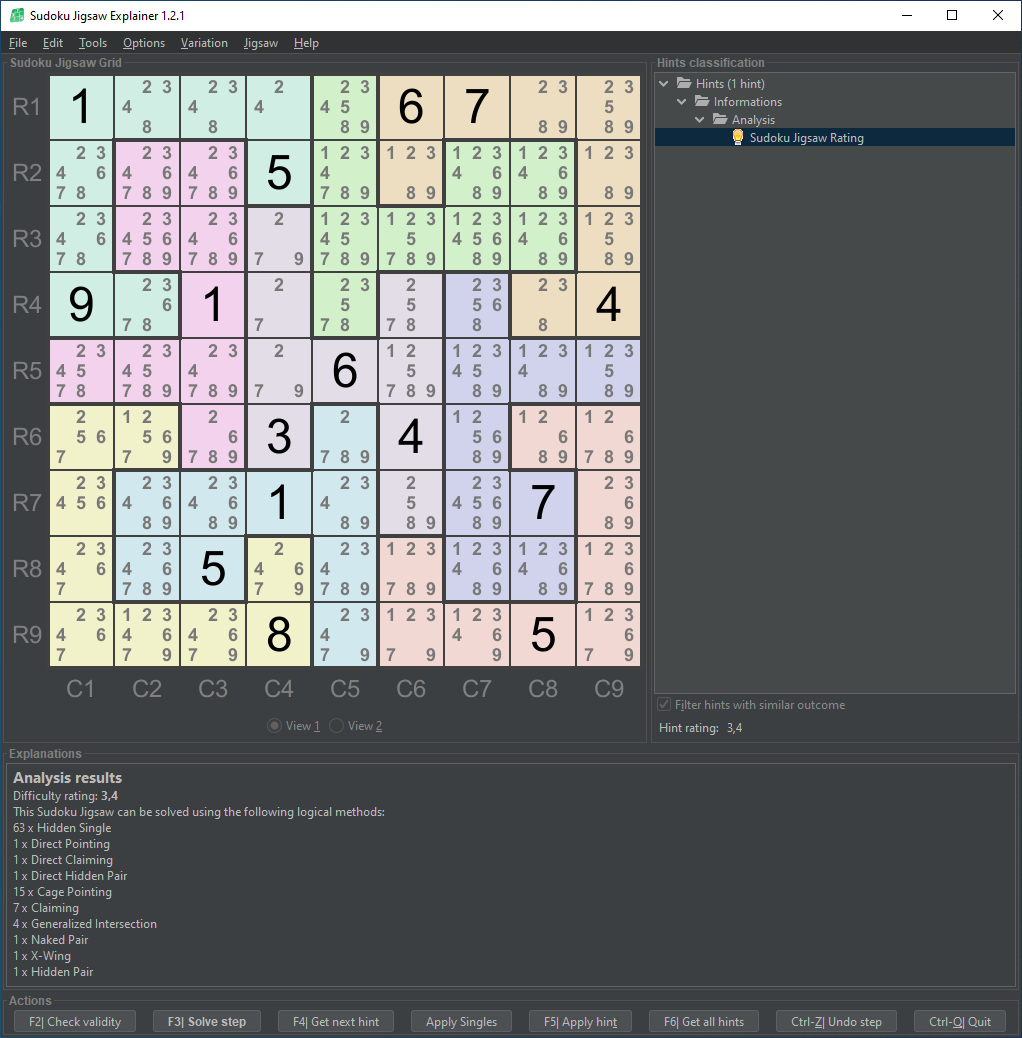

2021-01-07 (1).png (130.4 KiB) Viewed 460 times
urhegyi

Posts: 614
Joined: 13 April 2020

### Re: Jigsaw Layouts (Generate / Test)

Great urhegyi that you can make a puzzle out of the JS layout.
But my intention is larger. I am interested in a list of about 2500 valid JS- and/or JSB layouts.
Can you generate or provide this? I like to publish this also on my SiSeSuSo website.

Hajime

Posts: 1018
Joined: 20 April 2018
Location: Netherlands

### Re: Jigsaw Layouts (Generate / Test)

Hajime wrote:Great urhegyi that you can make a puzzle out of the JS layout.
But my intention is larger. I am interested in a list of about 2500 valid JS- and/or JSB layouts.
Can you generate or provide this? I like to publish this also on my SiSeSuSo website.

I did some research to find a shape that can be used to generate both JS and JSB.
Here a valid pattern:
Code: Select all
`111132222113333222115363342155563442556666644755864449758868499777888899777789999`

Proof: 1 solution for JSB:
Hidden Text: Show
Code: Select all
`123456789564879231789123645951632874836745192472981563645298317298317456317564928 111132222113333222115363342155563442556666644755864449758868499777888899777789999`

JS examples:
Code: Select all
`......2.........358.....34.1....6.........8.6......9....5.69....53....1.......... 111132222113333222115363342155563442556666644755864449758868499777888899777789999.....1.....4...362.2............6.....9......54683...1............2.4....1..9.... 111132222113333222115363342155563442556666644755864449758868499777888899777789999`

JSB examples:
Code: Select all
`........9......8.....1.......9.8.6....4.5.......7.....21......6.6................ 1111322221133332221153633421555634425566666447558644497588684997778888997777899995.......6..4......6...82154.42............4.......4983....6...2.9.2.3...3........ 111132222113333222115363342155563442556666644755864449758868499777888899777789999......6..........2645....8..1.6......9....4..8...........5.2............4..1..8.3 111132222113333222115363342155563442556666644755864449758868499777888899777789999`

Last two have ER 6.6
Last edited by urhegyi on Sun Jan 10, 2021 12:56 am, edited 2 times in total.
urhegyi

Posts: 614
Joined: 13 April 2020

### Re: Jigsaw Layouts (Generate / Test)

I tested this with SiSeSuSo 9 jan version: ER7.3 takes some time to solve but succeeded.
Code: Select all
`#1//B4,JSB.2......5.....8...56..2......1....................7........5.....8....3....97....111132222113333222115363342155563442556666644755864449758868499777888899777789999`

Hidden Text: Show
Code: Select all
`Eliminated candidates per SER and per SudokuMethod    \ Sudoku |   SER |     1                   |-------|------Not counted elims  |     0 |    99Naked Singles      |   0.1 |    24Hidden Singles     |   0.2 |    91Naked Single  [1]  |   2.5 |     6Naked Pair    [2]  |     3 |    23Naked Triple  [3]  |   3.6 |     5Naked Quad    [4]  |     5 |    18Hidden Quad   [5]  |   5.4 |    22Locked singles[2]  |   2.8 |    57Locked singles[3]  |   2.9 |    14Locked singles[4]  |     3 |     3WXYZ Wing     [4]  |   5.5 |     1VWXYZ Wing    [5]  |   6.3 |     1X-chain/cycle [4]  |   6.7 |     3XY-chain      [4]  |     7 |     3XY-chain      [5]  |  7.05 |     1XY-chain      [9]  |  7.25 |     2XY-chain      [10]  |   7.3 |     5                   |-------|------Eliminated Cand's  |   378 |   378Sum(SER * Cand's)  |651.55 |651.55Initial Candidates :   378Maximum SER rating :   7.3Labour rating      :651.55`

Very nice example of the new techniques
urhegyi

Posts: 614
Joined: 13 April 2020

### Re: Jigsaw Layouts (Generate / Test)

urhegyi wrote:I tested this with SiSeSuSo 9 jan version: ER7.3 takes some time to solve but succeeded.
Code: Select all
`#1//B4,JSB.2......5.....8...56..2......1....................7........5.....8....3....97....111132222113333222115363342155563442556666644755864449758868499777888899777789999`

Very nice example of the new techniques

Indeed, very nice puzzle.
I see that most elapsed time is in the X-chain procedure... 19 seconds of the 33.5 seconds total.

Hajime

Posts: 1018
Joined: 20 April 2018
Location: Netherlands

### Re: Jigsaw Layouts (Generate / Test)

urhegyi wrote:I did some research to find a shape that can be used to generate both JS and JSB.

These JS layouts will generate both JSs and JSBs: j01, j08, j09, j11, j16, j17, j23, j30, j31, j34.
It's quite rare to find a JS that can be solved as JSB (the numbers have to be in the right places to form 3x3 blocks).
Some JSBs can also be solved as JSs, e.g this one (j09 Moonlotus):
Code: Select all
`..4.1...8..97......1.....6.5....3.....7...43.6..1....9.....8.......2.........7... 112222233111222333411123335441666355444666555447666855477798885777999888779999988 JSB ED=6.6/1.2/1.2..4.1...8..97......1.....6.5....3.....7...43.6..1....9.....8.......2.........7... 112222233111222333411123335441666355444666555447666855477798885777999888779999988 JS ED=8.5/1.5/1.5`
1to9only

Posts: 4068
Joined: 04 April 2018

### Re: Jigsaw Layouts (Generate / Test)

When I have some free time soon, I will look into the problem of generating valid JSB layouts, if Hajime is still seeking them?

The general approach, off the top of my head, would be to take a regular Sudoku solution grid, then look for possible jigsaw region assignments that fit the grid ... preferably "nice" ones, with some symmetry ...

Mathimagics
2017 Supporter

Posts: 1884
Joined: 27 May 2015
Location: Canberra

### Re: Jigsaw Layouts (Generate / Test)

Mathimagics wrote:When I have some free time soon, I will look into the problem of generating valid JSB layouts, if Hajime is still seeking them?

The general approach, off the top of my head, would be to take a regular Sudoku solution grid, then look for possible jigsaw region assignments that fit the grid ... preferably "nice" ones, with some symmetry ...

Yes, I am still interested and with intention to publish "your" sets of JS (not B) and JSB, if you agree.
Another possibility is that I can implement some nice algorithm to generate a JS or JSB from scratch in SiSeSuSo, but not yet figgered out how-to

Hajime

Posts: 1018
Joined: 20 April 2018
Location: Netherlands

### Re: Jigsaw Layouts (Generate / Test)

.
I am happy to share my catalog of jigsaw layouts, especially if anyone can create nice puzzles from them ...

That catalog has 3.5 million valid+nice jigsaw layouts (valid meaning they have JS solutions, "nice" as defined above).

There is a simple SAT-based method that can test these layouts to see which ones are also valid for JSB. That's what I intend to do next ...

Mathimagics
2017 Supporter

Posts: 1884
Joined: 27 May 2015
Location: Canberra

### Re: Jigsaw Layouts (Generate / Test)

My first sampling of the "nice jigsaw layout" catalog suggests that as many as 30% are valid JSB layouts.

Here is a sample of 20. My SAT testing looks ok, and I am confident that they are indeed valid, but could someone confirm this?

JSB layouts: Show
Code: Select all
`111112222333311222333451122364455555366444557666664457889964777888997777888899999111111222131333422133335442666355422766555442776558444766588889776888989777999999111111223411122233444442233544462233566666663557768883557788888557779998577999999111123333111222223411225333444425366445555566447586666777588996788888999777789999111123333111122333142222235444426635446666655476685555478888859777889999777789999111111122333312222333312422355566444556666644555664447885897777888897777889999999111112222134444422133442225134466555136666657333668857399988557998888857999977777111111222311442222331455226344445766334555766334577776388557966888877996888999999111111222333141252663142255633442255633347775668844775668849755868949777888999999111111122131322222433335552436633552446666655744886685744488885777778989779999999111122223411123323415222333415556363444456666747455586777999586797798886799998888111112333114412333144452223446455223746555283766558288766658889777698899777699999111112222314444422311145222334445566333555666335577766888579996887777796888899999111111222113331222333344242356664442356564647855566647858557777888977799888999999111111112333341222333344422356664422755666442775566648775558888777958888799999999111111222113132222333334452663344552666645555766448855764488888777789899777999999111111122333312222344412562333455562344456667845556777845896667888897777889999999111111112331222222433556772443556772443356677844355677844355667888888966899999999111111222133112242333332244556336244556666644557688644557788888757799889777999999111111222131344442133334522334444522365555527665888877665877779688887979666999999`

Mathimagics
2017 Supporter

Posts: 1884
Joined: 27 May 2015
Location: Canberra

### Re: Jigsaw Layouts (Generate / Test)

Mathimagics wrote:Here is a sample of 20. My SAT testing looks ok, and I am confident that they are indeed valid, but could someone confirm this?

I can confirm that all 20 JSB layouts have a solution

Hajime

Posts: 1018
Joined: 20 April 2018
Location: Netherlands
